Avant

An innovation by Roca, unique in the world

Roca has reimagined the bathroom space by introducing a cutting-ege toilet with integrated cistern that frees up valuable space. These practical functionalities result in a toilet for everyone and adaptable to any house. A step into the future with simplified bathroom routine.

Main features

All in one solution. All in one piece.

Avant integrates the cistern inside the bowl, out of sight. This maximises available space and unifies aesthetics and practicality in the bathroom. No visible operating plate disrupts the clean lines, creating an airy feel.

All components are easily accessible and easy to handle, particularly those related to water function, which are positioned off the walls. The cistern is easy to access for straightforward installation and maintenance, avoiding the need to modify the wall during major repairs. Moreover, Avant incorporates a seal-free design that prevents leakage, eliminating potential leak points.

Perfect aesthetics, simple control.

Less is more in the Avant innovative toilet: Designed with a neutral and contemporary aesthetic to match any bathroom space.

Easy flushing control, water saving: The flush control mechanism, with its user-friendly design, features an integrated cistern with a low-consumption dual flush (4.5/3 L) using mains water pressure at 2.0 bar and a flow rate of 14l/min. With side push buttons for easy operation, it allows a choice between full or half flush, ensuring efficient water use and significant savings.

A WC that comes in two models: One wall-hung and other back to wall floorstanding. Both offer a modern touch and create a more visually spacious and airy environment. The WC complies with European regulations, including EN1717, ensuring security standards.

Powering innovation: solutions for smooth operation

Roca offers two innovative models of the Avant toilet to suit different installation requirements.

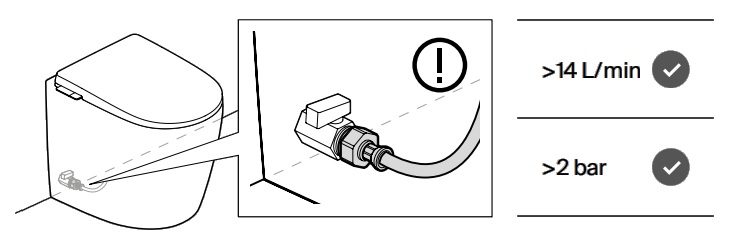

Electricity-Free Avant: Roca’s innovative toilet with integrated cistern works without electricity, relying on mains water pressure and flow. It requires a minimum pressure of 2 bar and a flow rate of 14 litres per minute.

Avant-E (Electric Version): If the home’s water supply does not meet the required water pressure and flow, the Avant-E features an electrical connection that ensures smooth operation, even without specific pressure or flow conditions. When installing Avant, it is important to check the key parameters that influence the performance of the bathroom fittings, namely water pressure and flow rate. These values can vary depending on the location and type of house. The pressure and flow rate at the point of use in the bathroom are often different from the general inlet values, due to factors such as the distance from the water source, simultaneous use of other fixtures, or installation design issues. It is recommended that a professional be consulted to ensure that everything is set up correctly.



Venturi effect

The new revolutionary flushing.

The innovative Avant is designed to bring the most seamless experience to the bathroom. Roca is taking a leap in technology by including a system based on the Venturi effect that will change the future of flushing.

A patented solution based on physics: Roca and SIAMP jointly innovated this new technology based on the Venturi effect evolving the integrated cistern concept to the present day.

More control over water: All flushing systems are outside of the wall and integrated into the toilet and they are seal-free for extra-safety against leakage and easier maintenance.

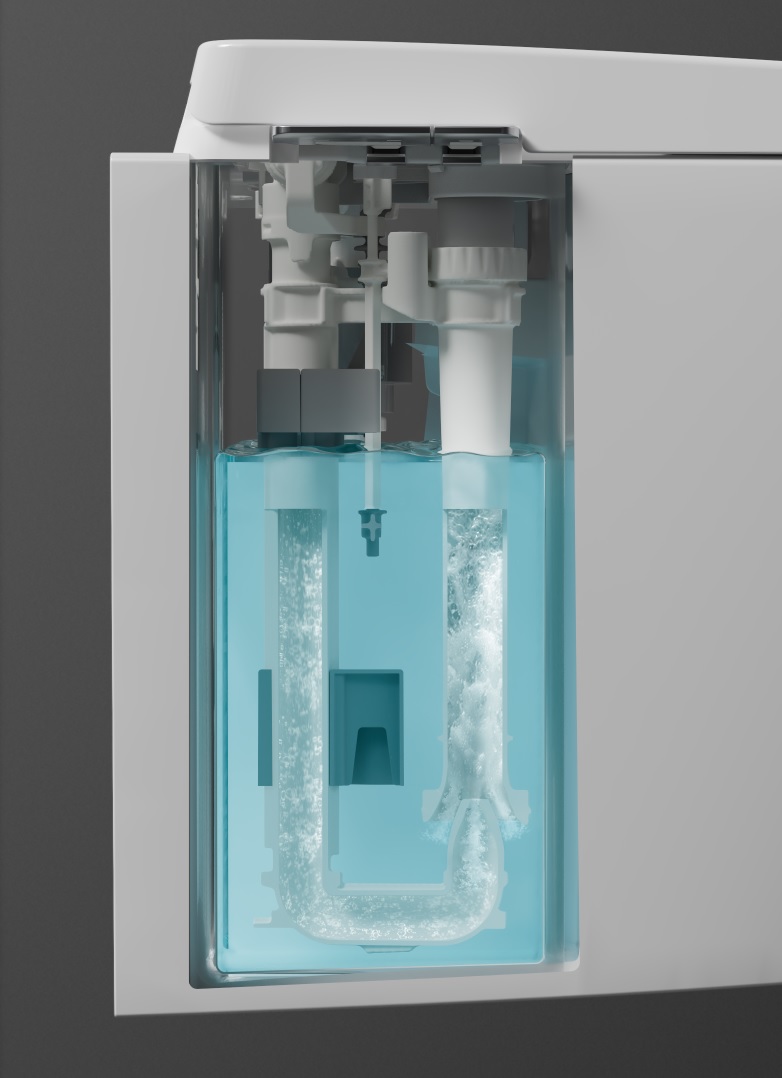

Science making life easier. The system explained

01

When the tank reaches full capacity, the flush mechanism float is in the initial position, and the flush mechanism is in the closed state.

02

Once the flush button is pushed, the float is released from the mechanism and floats. The mechanism opens and the water enters from the net producing the Venturi effect which allows a water of the tank suction. While it flushes, the water level drops, and the float is still floating.

03

This suction effect runs while the water coming from the mains still enters, producing the Venturi effect. Until the water level in the tank doesn’t reach the float initial position, the flushing continues.

04

Finally, the water level drops to the point that the float returns to the initial position; it is where is retained and the mechanism closes the water inlet. The tank is filled again through the filling mechanism.

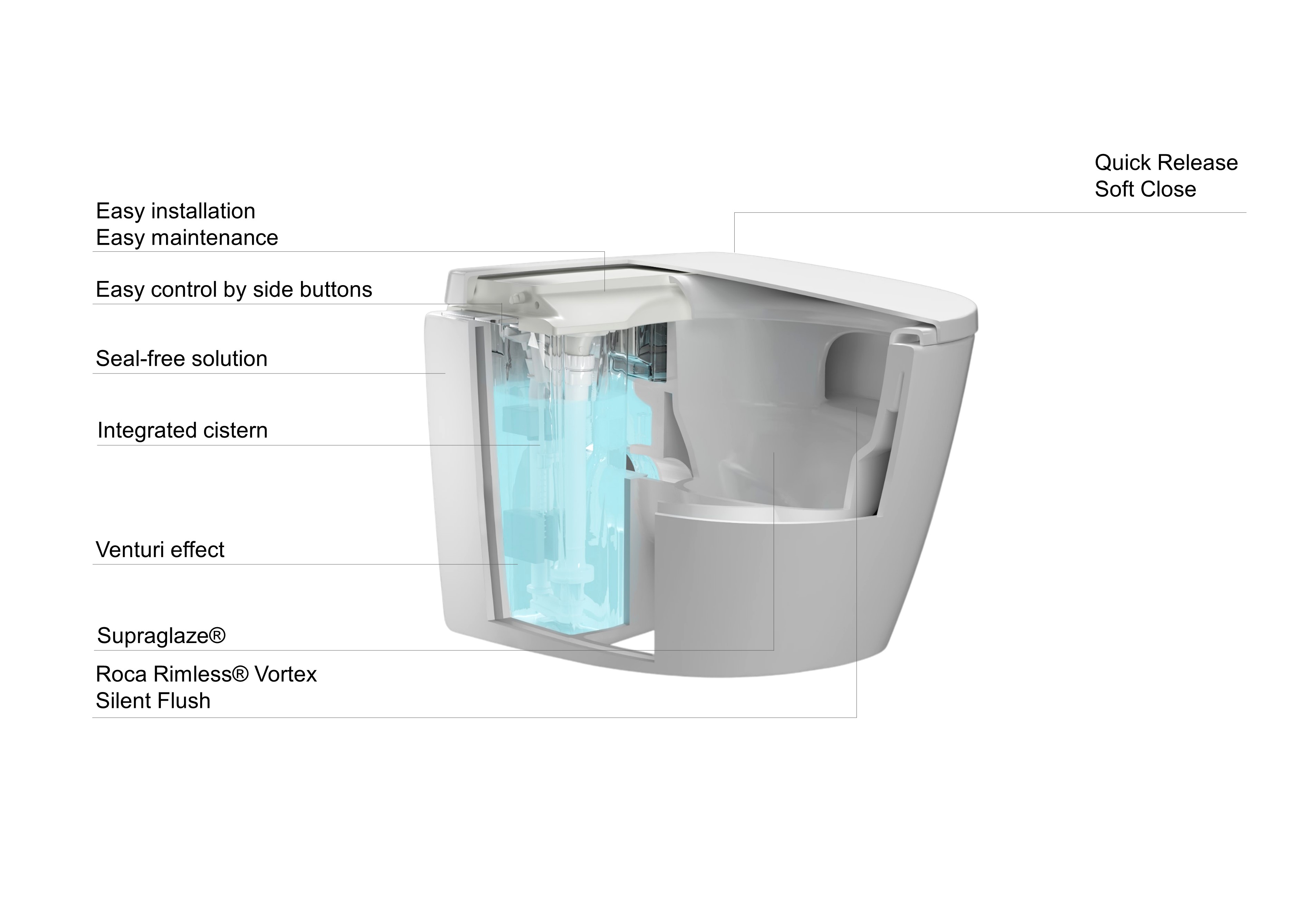

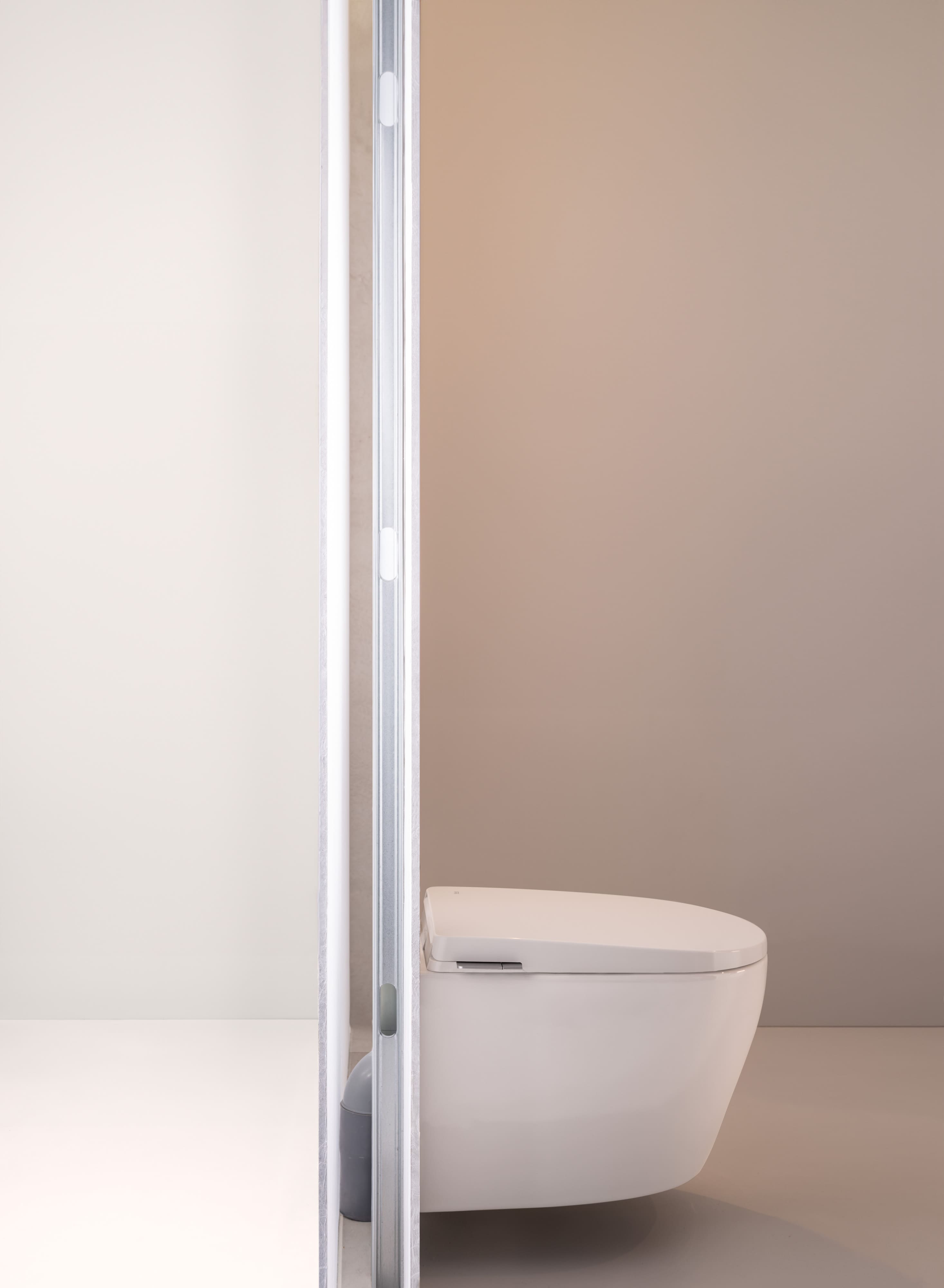

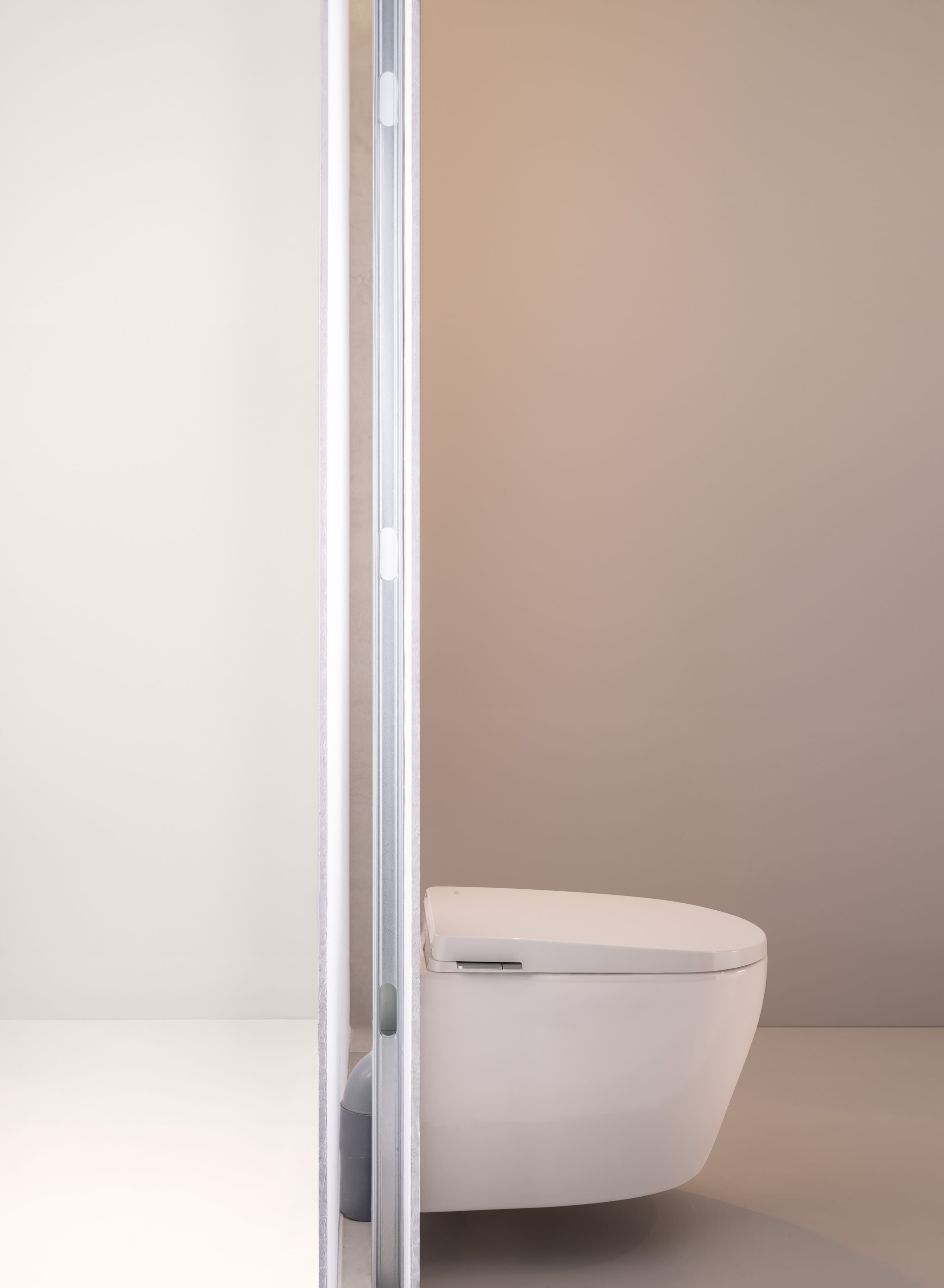

Integrated cistern (with or without electrical connection)

The cistern is incorporated inside the bowl, out of sight. This maximizes available space and provides a modern and pleasing aesthetic. With or without electrical connection, Avant is compatible with most existing installations and requires a minimum water pressure of 2 bar and a flow rate of 14 litres per minute.

Venturi effect

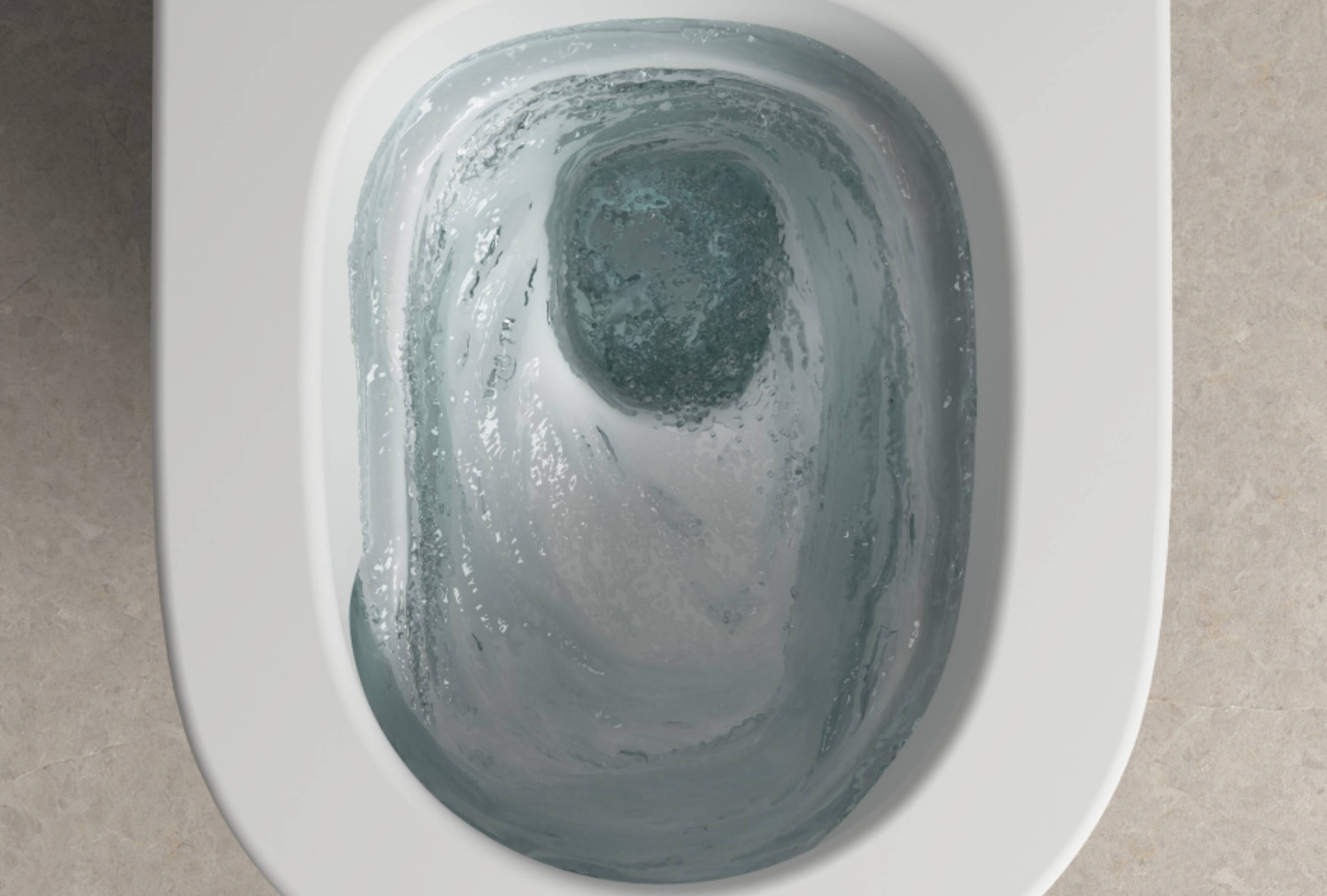

The Venturi effect creates a powerful suction force, ensuring superior flushing for a thorough and hygienic clean.

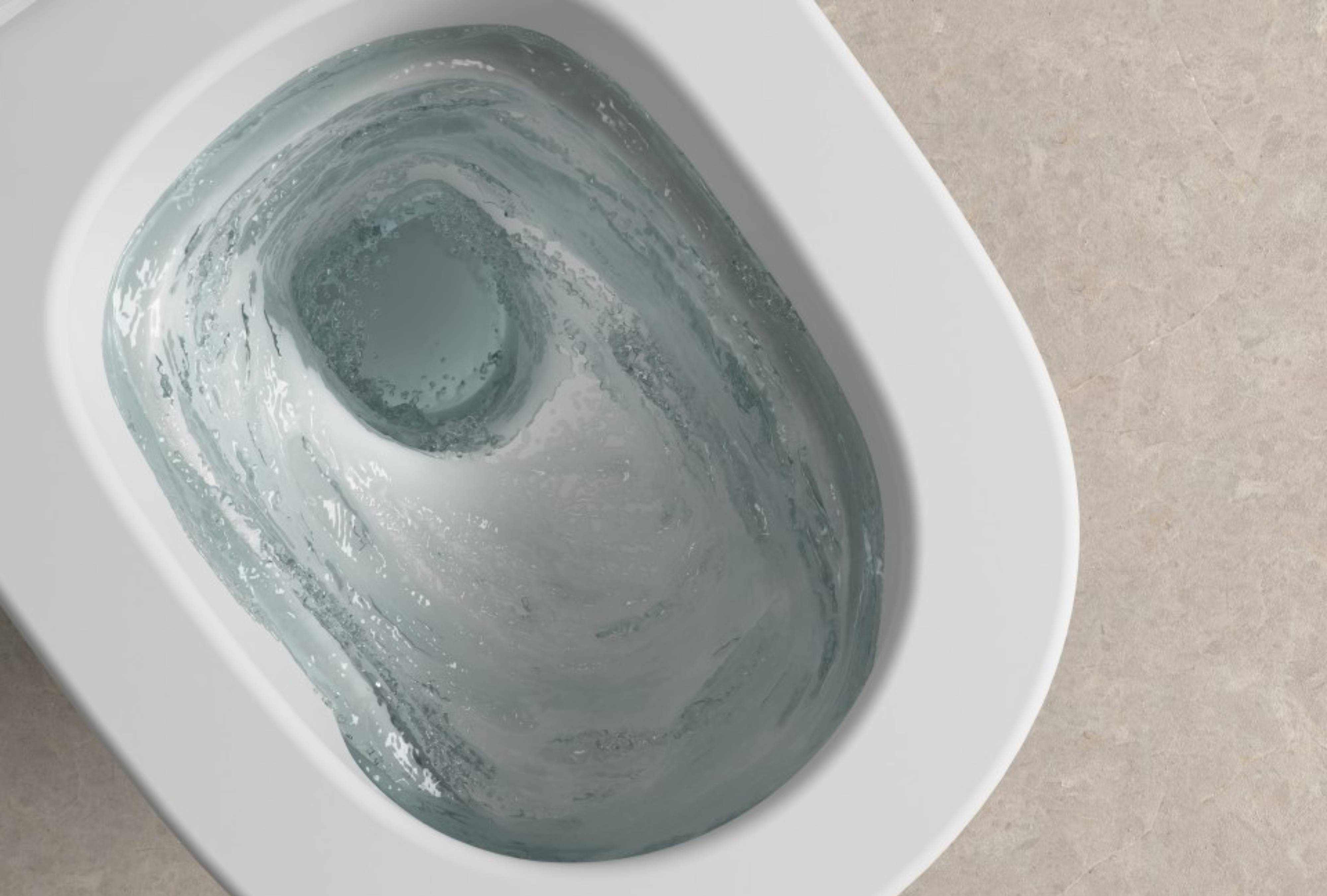

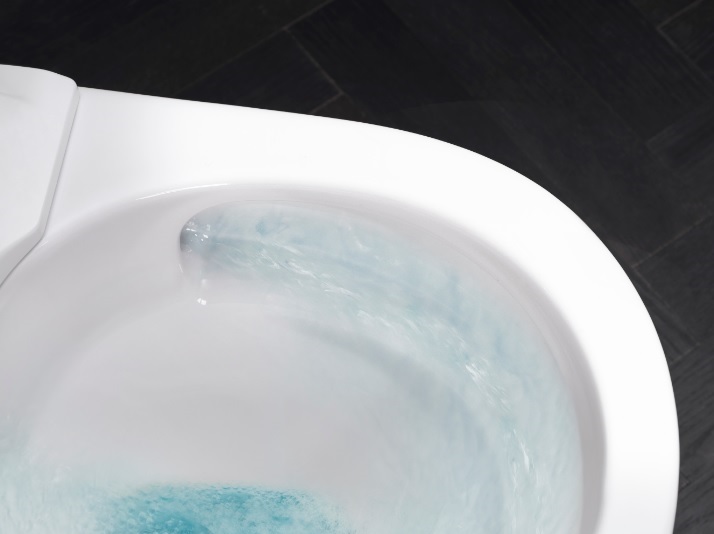

Roca Rimless ® Vortex

A bowl specially designed to optimize water flow, flush performance and cleaning. No splashing and aerosols reduction.

Silent solution

Reducing the noise for a more comfortable user experience.

Supraglaze ®

An exclusive Roca glazing that guarantees even greater hygiene, allowing any residue to slide off and inhibits the build-up of dirt and germs.

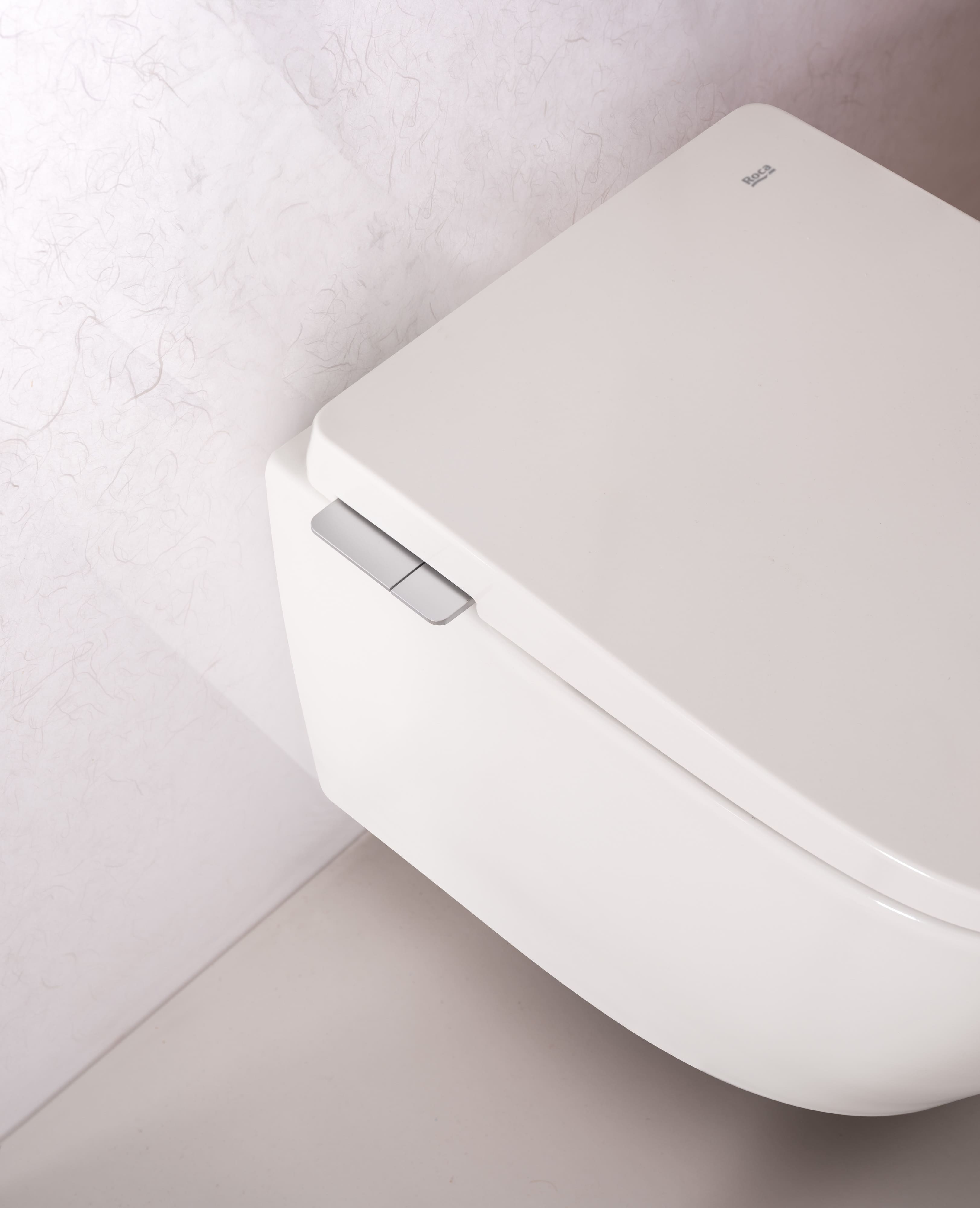

Easy control by side panel

Thanks to its discreet and intuitive flush controls, the toilet offers a user-friendly experience. Two types of flushing for water saving: 4.5 or 3 litres.

Seal-free solution

All flushing systems are integrated into the toilet and are seal-free, providing extra safety.

Easy installation & Easy maintenance

Designed for effortless installation and maintenance, ensuring a hassle-free experience in any bathroom space and prevents leakage.

Quick Release & Soft Close Seat and Cover

It provides a stable and comfortable seating experience and gently closes with a whisper-quiet click. The seat and cover are easily removable, making the task of cleaning simpler.

Product range

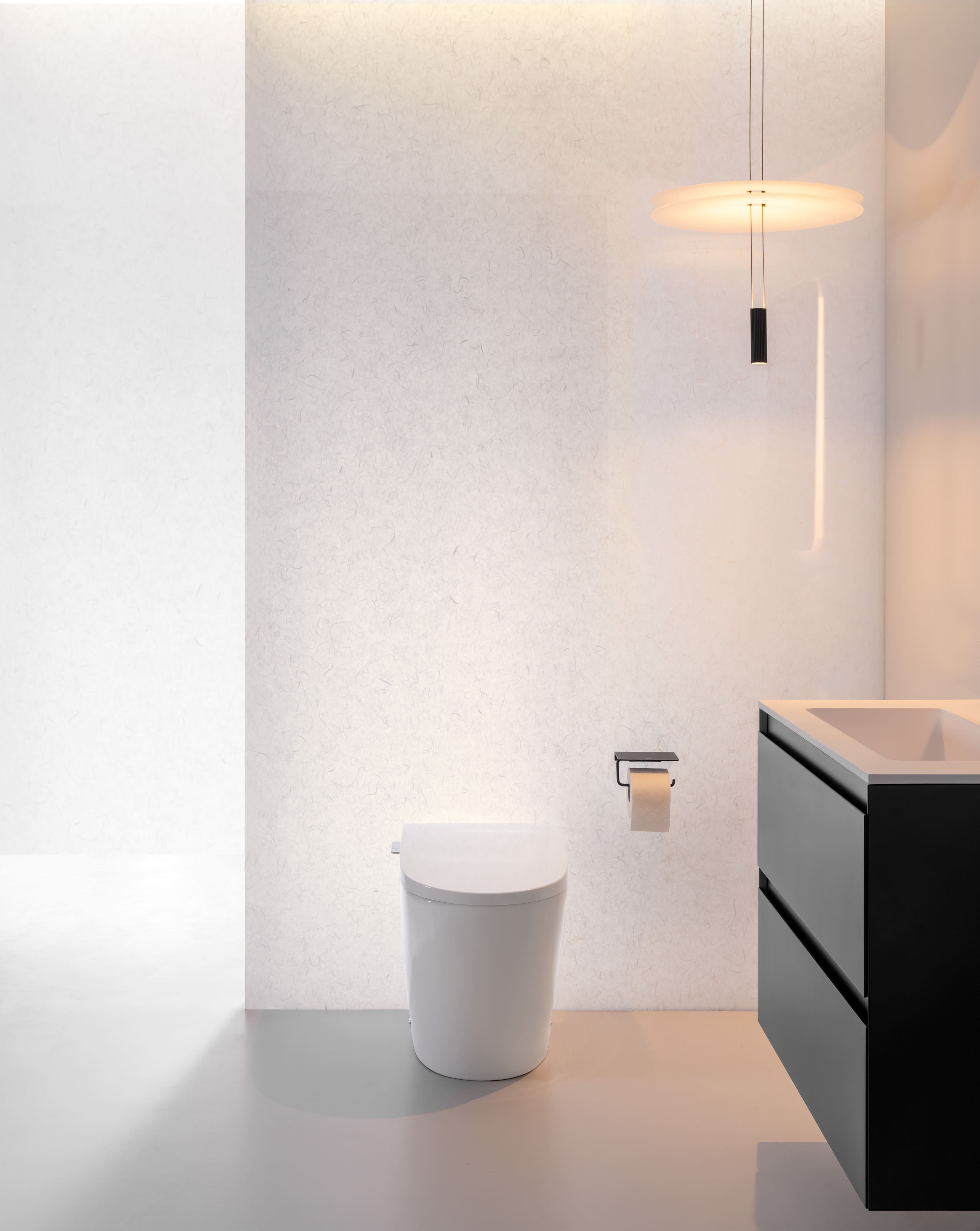

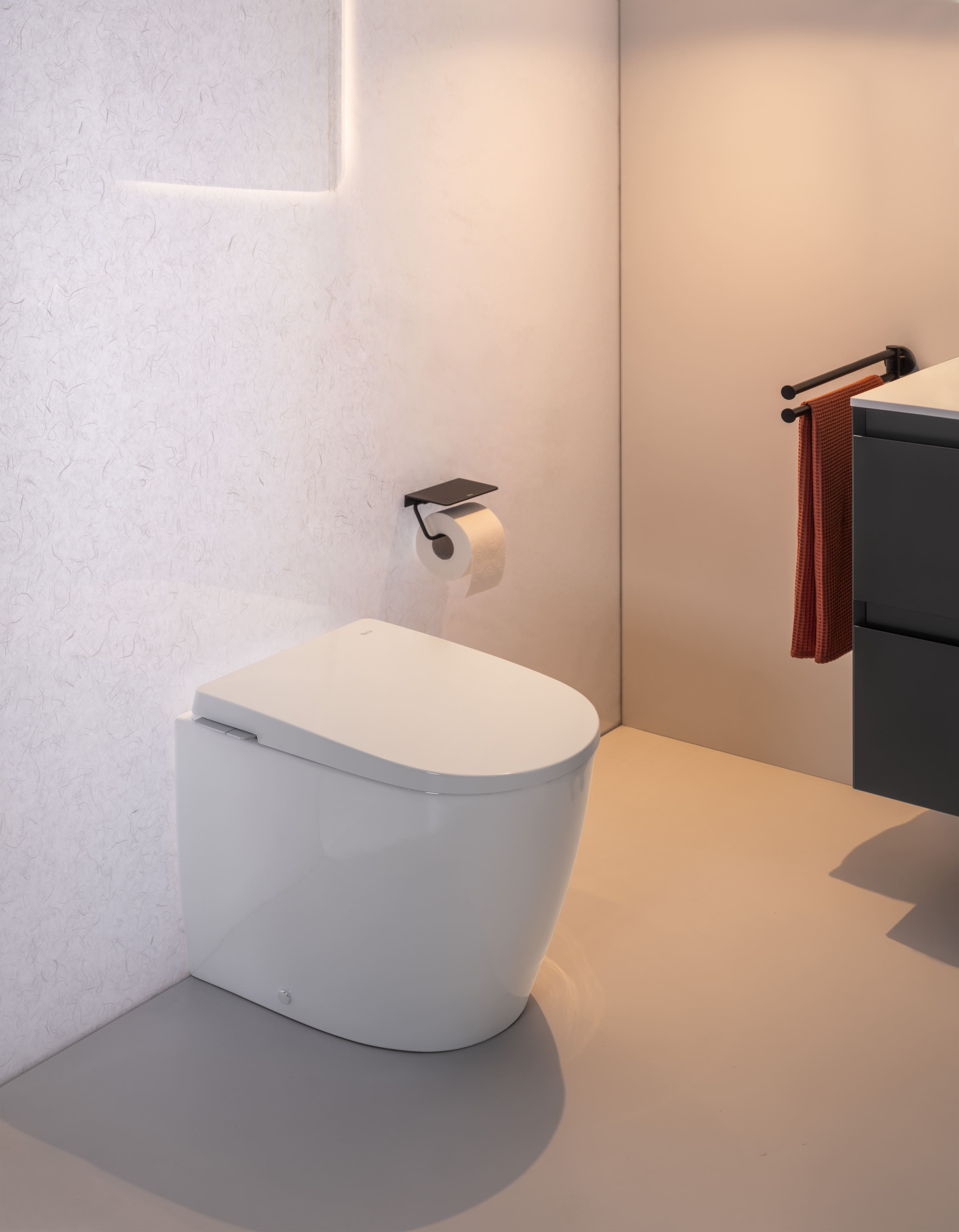

Avant In-Tank® back to wall floorstanding external connection

Avant A80336MS0H

Avant-E A80336MS01*

Avant In-Tank® back to wall floorstanding internal connection

Avant A80336MS0W

Avant-E A80336MS00*

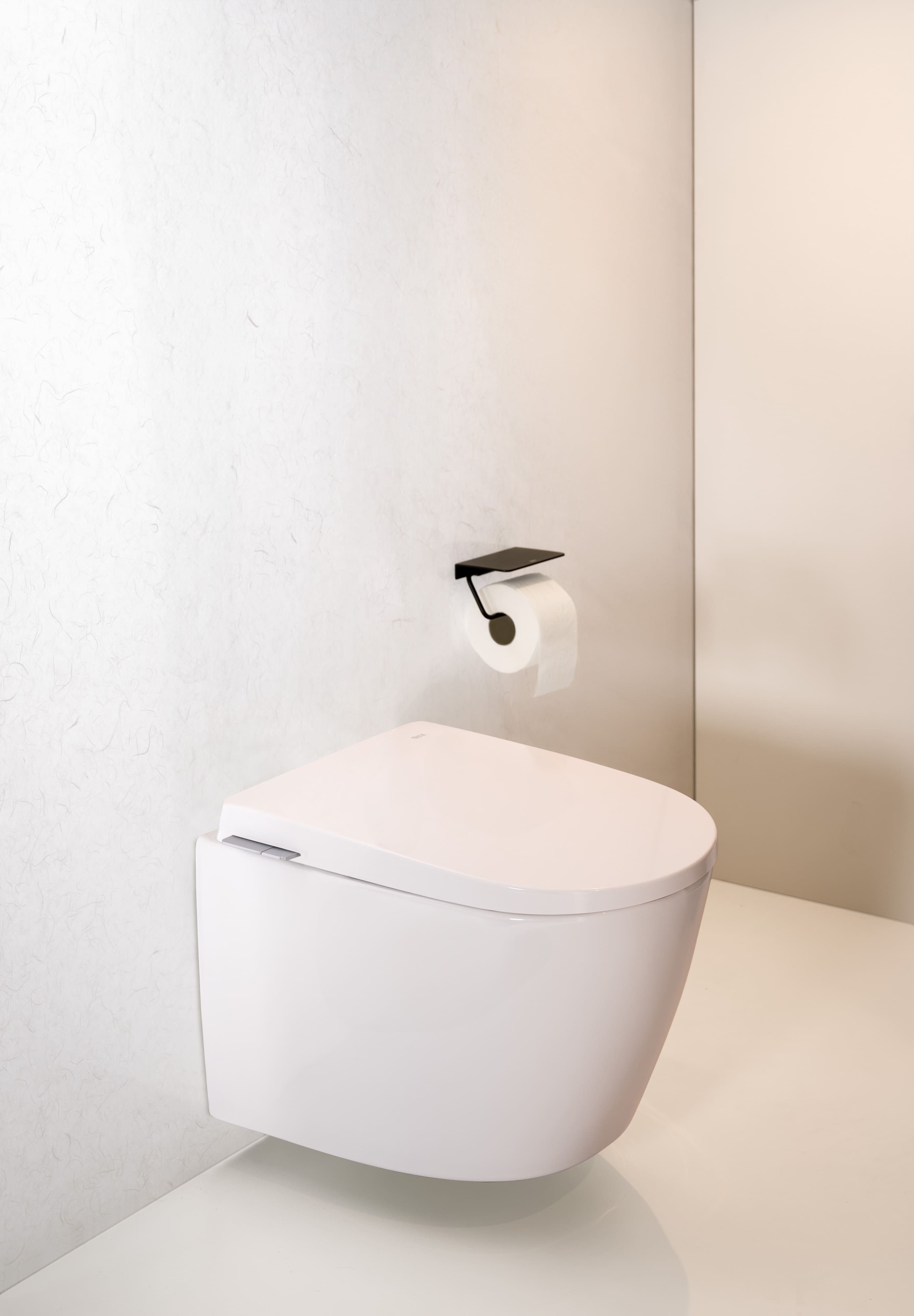

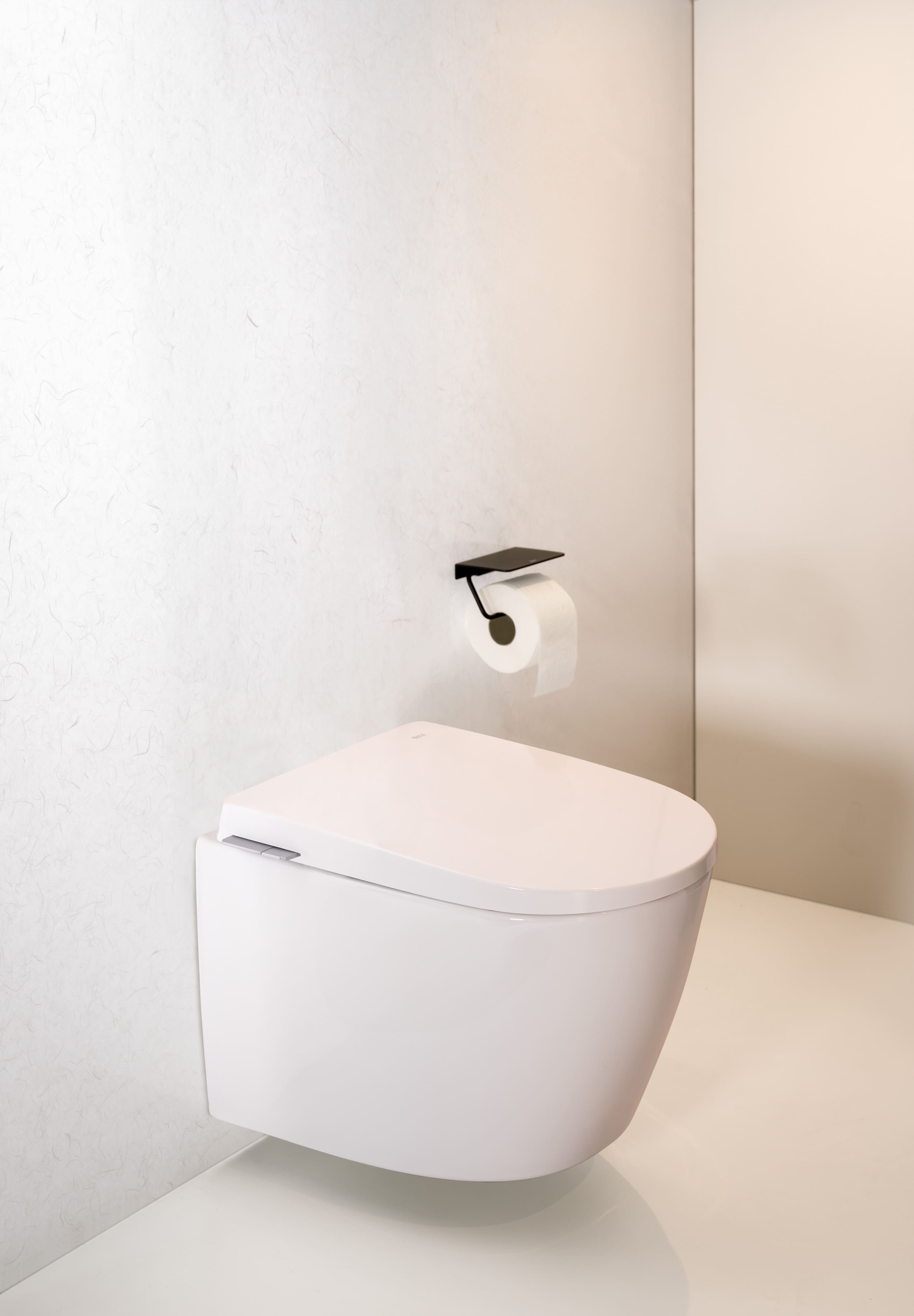

Avant In-Tank® wall-hung

Avant A80336NS0H

Avant-E A80336NS01*

*Minimum flow and pressure requirements: electrical version required when the minimum water supply flow is less than 14 L/min and the required pressure is below 2 bar.






Avant In-Tank® AWARDS

iF Design Awards 2024

Roca won an  iF Design Award, a world-renowned design prize with a  132-member jury made up of independent experts from all over the world, for its Avant In-Tank®.

Red Dot Design Award 2024

Avant In-Tank® toilet has been awarded with a Red Dot Award, a world-renowned design prize, evaluating the quality and innovation of designers and manufacturers in the creation of new products.

"Best of Best" ICONIC Award: Innovative interior" 2024

Avant In-Tank® toilet has been awarded with a "Best of Best" ICONIC Award:  Innovative interior", a world-renowned design prize organized by the German Design Council.

Gold Delta de Adi Fad 2024

Design Plus by ISH 2023
